Product name

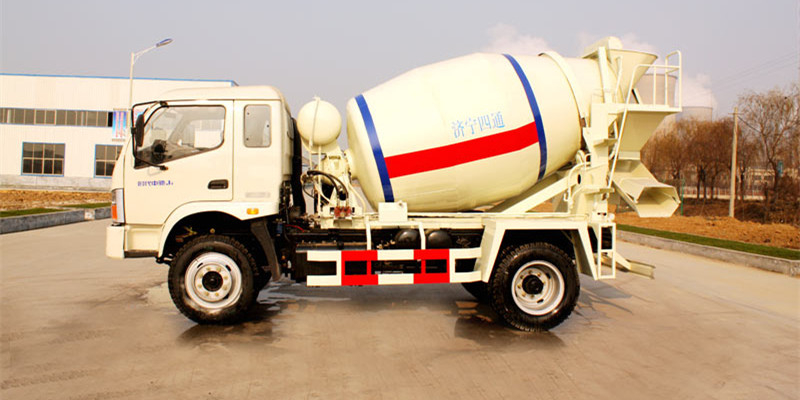

6 cbm cement mixer truck

Engine model

YC4D130-41 intercooling supercharge

Chasis No

Tangjun ZB3160TPE3F

Motor type

Constraint cycle refrigeration

General weight

(kg)15800

Motor displacement

4200

Carload dimension

7025*2285*3570V*B*h(mm)

Motor power

(kw)96

Wheel base

(mm)3700

Max standard rotation

(r/min)3200

Edipodium

(mm)1290

Mixing tube geometry area

(m³)9

Rear overhang

(mm)2035

Max mixing area

(m³)6

Max gradeability

25

Feeding speed

(m³)≥0.5

Max travel speed

(km/h)≤83

Discharging speed

(m³)≥0.8

Min wheel diameter

(m)≤15

Highest rotate speed

(r/min)6-15

Clutch

Biplate dry clutch combine

Mixing tube dip angle

(°)16

Type of belt drive

Through-drive

Max diameter of mixing barrel

(mm)2110

Drive mode

Rear wheel drive

Reduction box

HJ300.45

Veer style

Hydraulic power assisted

Oil hydraulic pump

Huayou 50 gear pump

Brake

Air brake

Hydraulic motor

Gerotor motor

Parking brake

Air brake braking

Water tank capacity

(L)180

Tyre

900-20

Water supply mode

Air pressure water carriage

Advantages

Matching dynamical system:matching Yuchai 4108 total power engine,fuel oil economy,much powerful,

Maintenance and repair convenient;famous brand multiple variable box,reasonable gears distribution,enhancing carload gradeability to lower actual fuel consumption;

Choosing and using civil famous accessories:adopting domestic Shijiazhuang Keyi brand reduction box,Ruian Shengjie oil pump,Zhenjiang energetically motor;

Saving problem of the climbing overflow effectively:unique sealing design and Max loading hopper design,filing the concrete easily,.

Accessories abrasive resistance well:after end discharge spout covered with good wear-resistant material ,increasing the abrasive resistance and service life greatly,agitator tank and vanes adopted argon automatic welding technique,wear-resistant material agitator tank and vanes can longer the service life twice.

Washing and watering conveniently:four ways waterway design and tank scouring,in-tank water,washing feeding mouth and hopper more easily.

Easily operated:two sides of cage manipulating structure set,make the feeding and discharging more convenient especially for rainy days and muddy pavement.

Variable pump optional,reasonable power distribution,increasing work piece ratio of engine.
